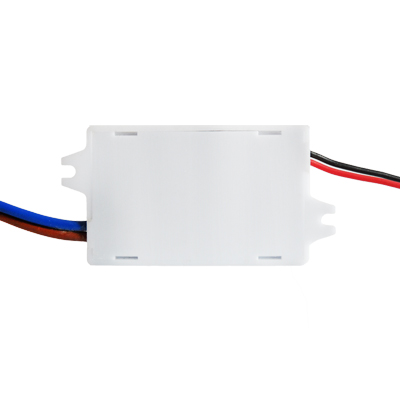

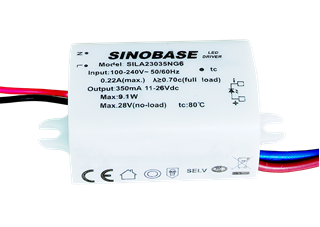

SINOBASE LED driver in small-sized plastic case (4-9W, 100-240Vac)
for garden light, wall light, underground lighting and other available fixtures
with 50000 hours warranty
Features:
· Design in small size to compact your lamp；

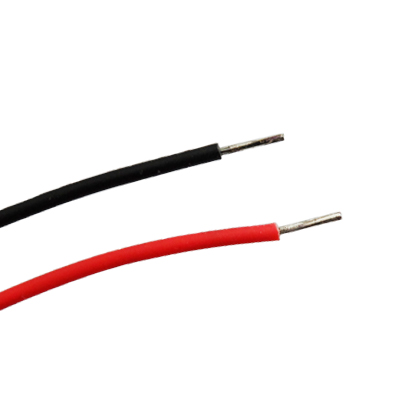

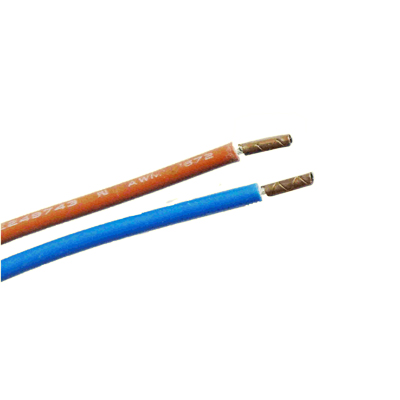

· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
Power | Model | U_in(Vac) | U_out (Vdc) | I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
4-9W | SILA27015NG6 | 100-240V～50/60Hz | 16-36 | 0.25 | -20-50 | 80 | 9 | 42.5*28.5*21 |
4-9W | SILA20020NG6 | 100-240V～50/60Hz | 13-30 | 0.3 | -20-50 | 80 | 9 | 42.5*28.5*21 |
4-9W | SILA16025NG6 | 100-240V～50/60Hz | 11-26 | 0.35 | -20-50 | 80 | 9.1 | 42.5*28.5*21 |
4-9W | SILA14030NG6 | 100-240V～50/60Hz | 10-23 | 0.4 | -20-50 | 80 | 9.2 | 42.5*28.5*21 |
4-9W | SILA12035NG6 | 100-240V～50/60Hz | 9-20 | 0.45 | -20-50 | 80 | 9 | 42.5*28.5*21 |
4-9W | SILA10040NG6 | 100-240V～50/60Hz | 8-18 | 0.5 | -20-50 | 80 | 9 | 42.5*28.5*21 |
4-9W | SILA09045NG6 | 100-240V～50/60Hz | 7-17 | 0.55 | -20-50 | 80 | 9.35 | 42.5*28.5*21 |
4-9W | SILA08050NG6 | 100-240V～50/60Hz | 7-15 | 0.6 | -20-50 | 80 | 9 | 42.5*28.5*21 |
4-9W | SILA07055NG6 | 100-240V～50/60Hz | 6-14 | 0.65 | -20-50 | 80 | 9.1 | 42.5*28.5*21 |
4-9W | SILA07060NG6 | 100-240V～50/60Hz | 6-13 | 0.7 | -20-50 | 80 | 9.1 | 42.5*28.5*21 |
P.S.:
* The current step is 50mA, contact us for the specs outside of above tables.
* Option for potting or not as per you need.
Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall light, garden light, bollards, recessed luminaries, and other availble luminaries, etc...
Mechanical specification：
