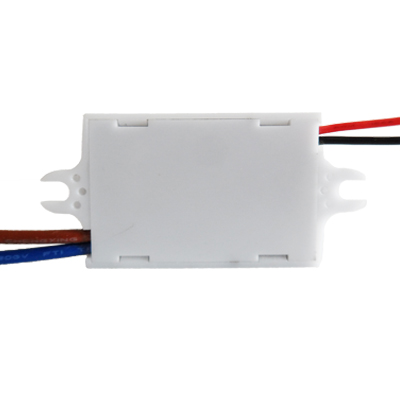

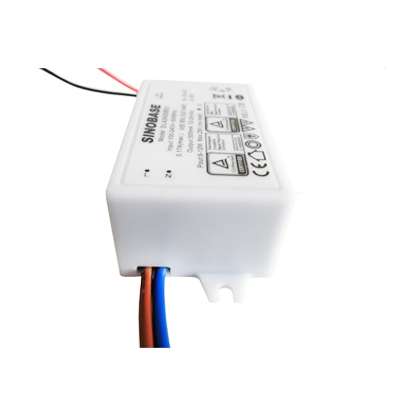

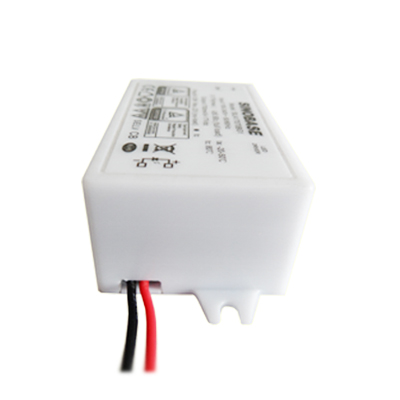

SinoBase small-sized water-proof LED driver with P_out 8-15W, U_input 100-240Vac
With broader input voltage and 50000hrs lifetime, optional for water-proof version
Features:
· Design in small size to compact various of LED luminaires;

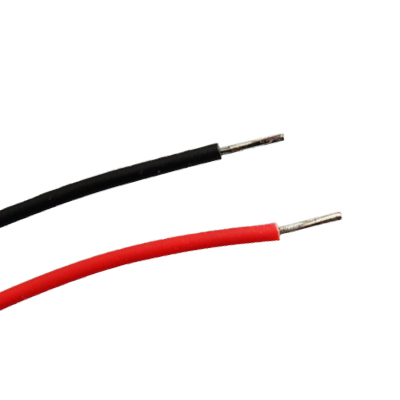

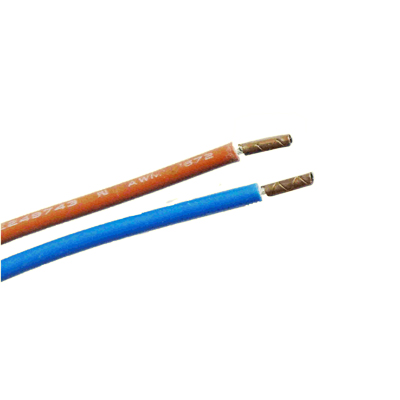

· Easy for installation with tinned or coated cables at both ends;
· Constant current mode LED driver;
· Output SELV protection, short circiut, over current and over voltage protection;
· Extremely high precision output current;
· A wide range of input voltage 100-240Vac;
· Power factor≥0.9;
Specification：
| Power | Model | U_in(Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
8-15W | SILA60025BG1 | 100-240V～50/60Hz | 32-60 | 0.25 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA50030BG1 | 100-240V～50/60Hz | 26-50 | 0.3 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA43035BG1 | 100-240V～50/60Hz | 22-43 | 0.35 | -20-50 | 80 | 15.05 | 69*35*23.5 |
8-15W | SILA38040BG1 | 100-240V～50/60Hz | 20-38 | 0.4 | -20-50 | 80 | 15.2 | 69*35*23.5 |
8-15W | SILA33045BG1 | 100-240V～50/60Hz | 17-33 | 0.45 | -20-50 | 80 | 14.85 | 69*35*23.5 |
8-15W | SILA30050BG1 | 100-240V～50/60Hz | 16-30 | 0.5 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA27055BG1 | 100-240V～50/60Hz | 14-27 | 0.55 | -20-50 | 80 | 14.85 | 69*35*23.5 |
8-15W | SILA25060BG1 | 100-240V～50/60Hz | 13-25 | 0.6 | -20-50 | 80 | 15 | 69*35*23.5 |
8-15W | SILA23065BG1 | 100-240V～50/60Hz | 12-23 | 0.65 | -20-50 | 80 | 14.95 | 69*35*23.5 |
8-15W | SILA22070BG1 | 100-240V～50/60Hz | 11-22 | 0.7 | -20-50 | 80 | 15.4 | 69*35*23.5 |
P.S.:
* The certified current step is 50mA, contact us for more models to meet your needs.
* Optional for glue potting or not as per your requirements.
Certification： TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：

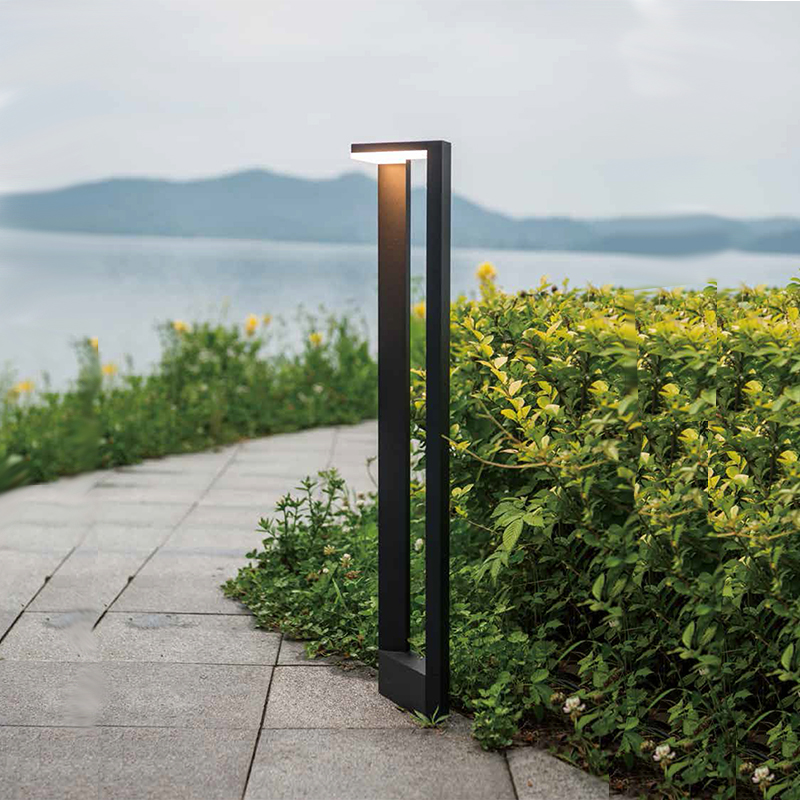

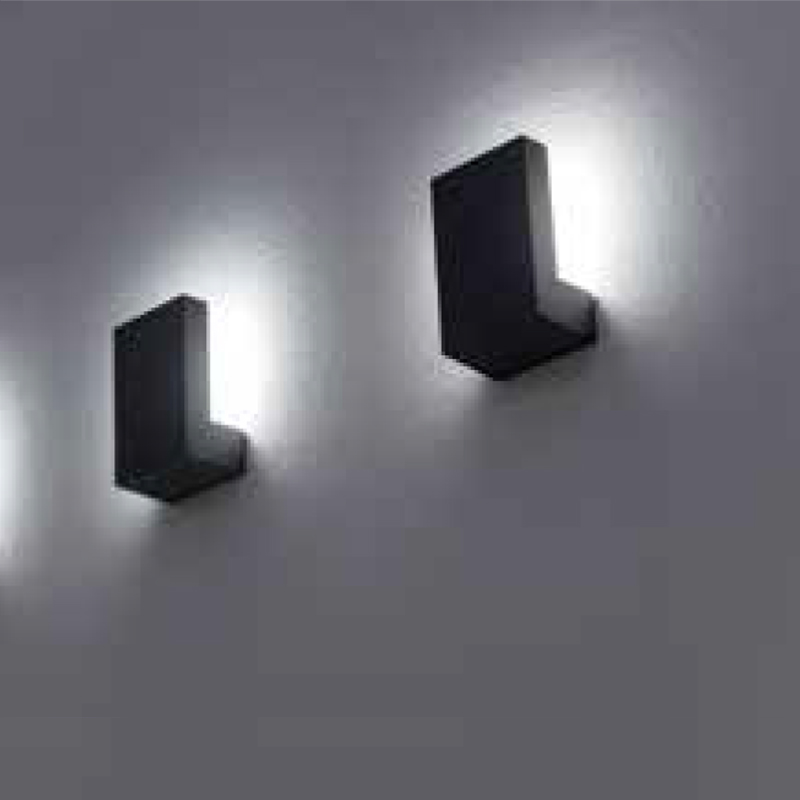

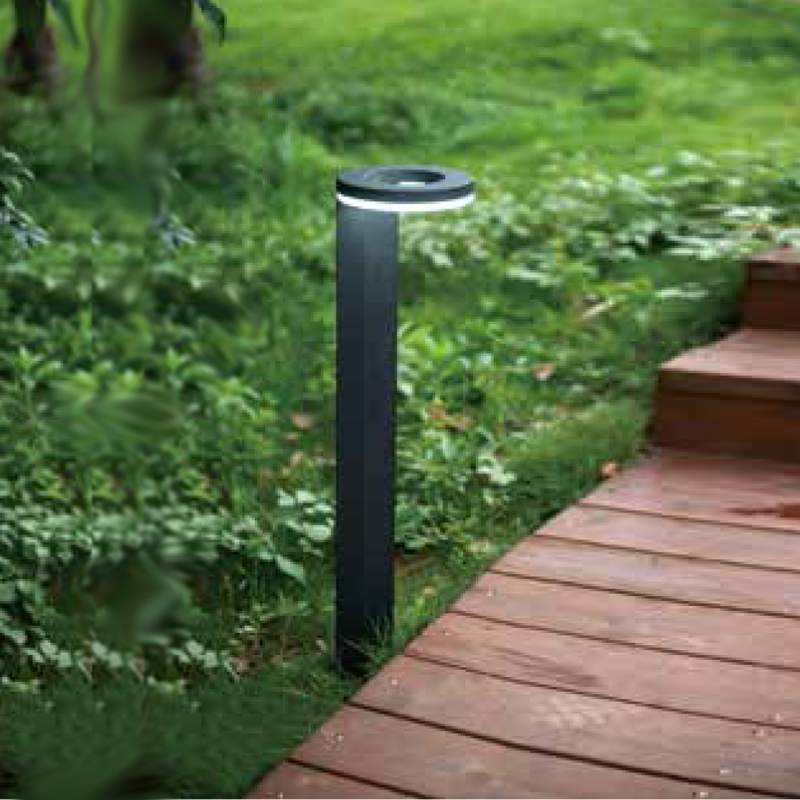

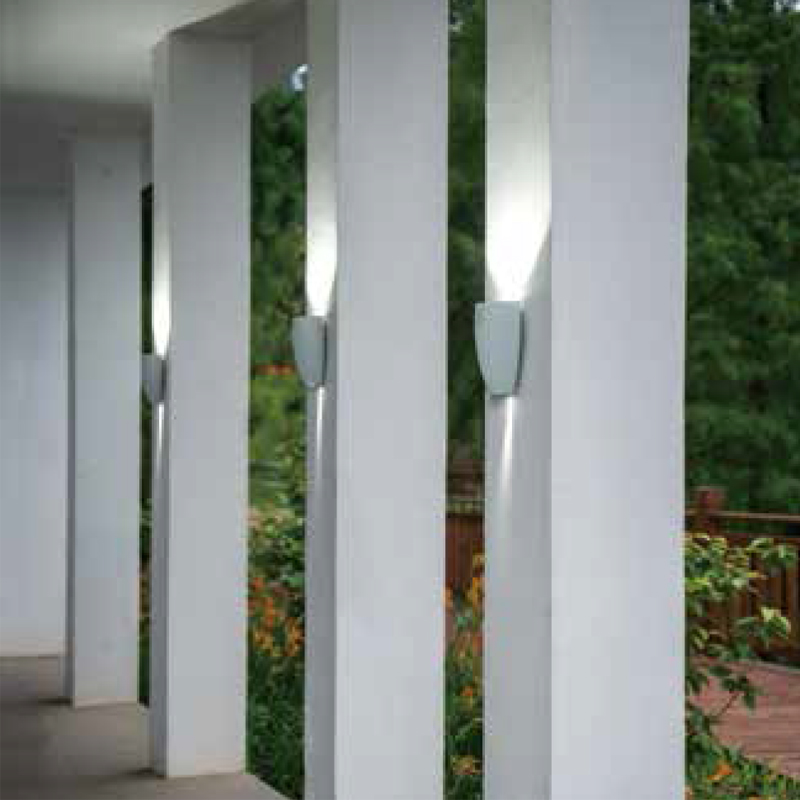

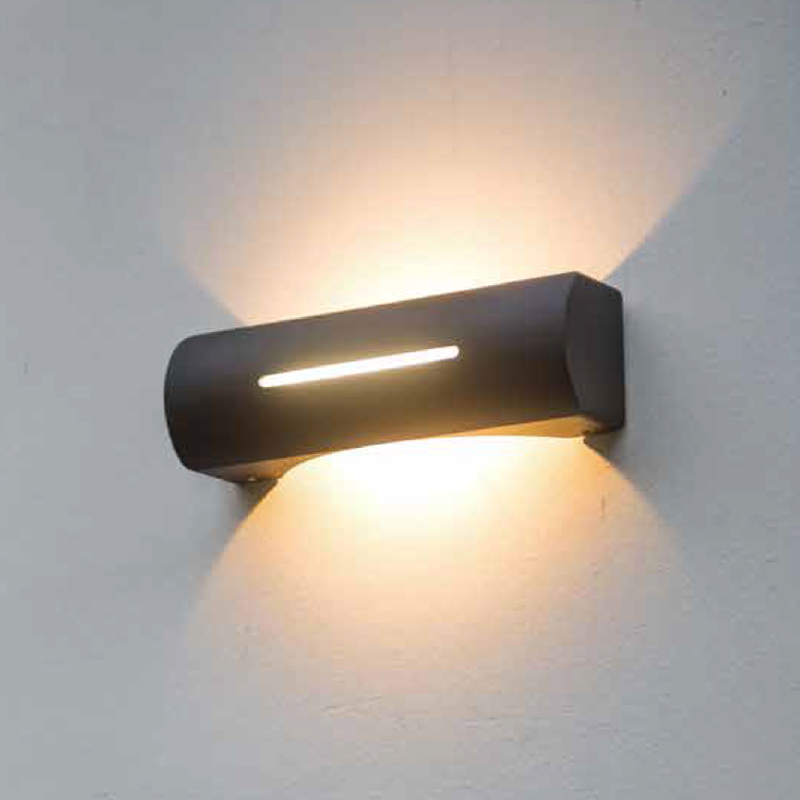

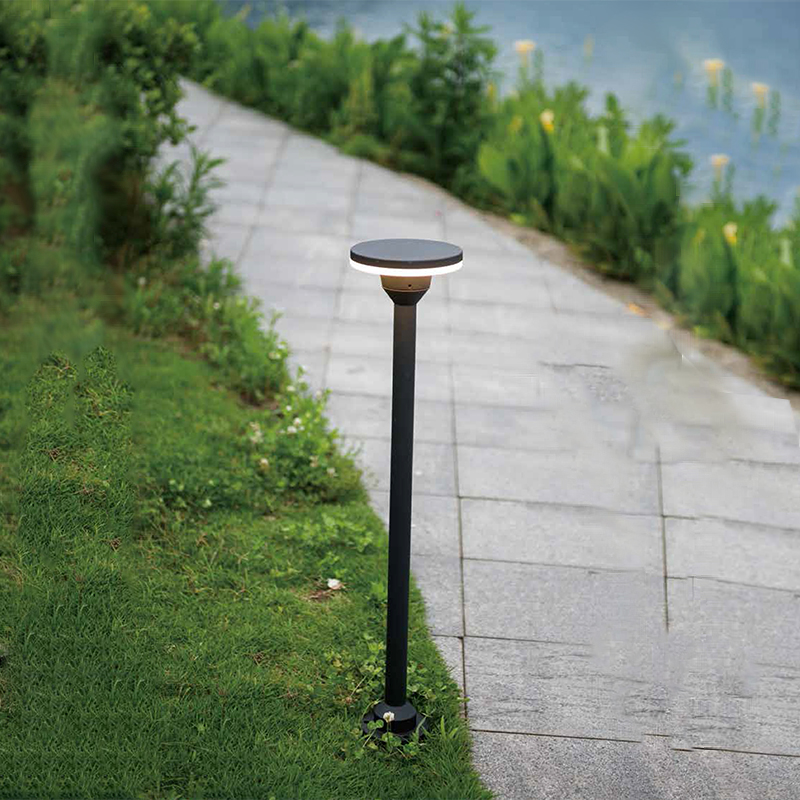

Design for all applicable LED luminaries, such as wall lamp, garden lamp, recessed light, bollards and other available LED luminaries, etc...

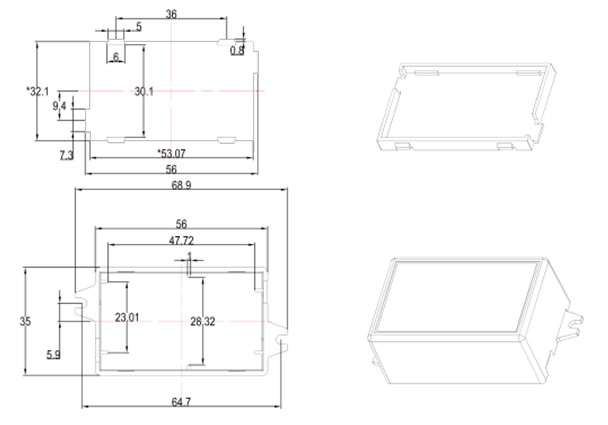

Mechanical specification：
water proof, small size, mini size LED Driver, SinoBase, for wall / garden lighting, SILA*****BG1, small
