6-12W, 100-240Vac, CC LED Driver for wall / garden luminaries

Product Model:SILA*****BG1

Brand:SINOBASE

MOQ:500

Origin:CHINA

Email Enquiry

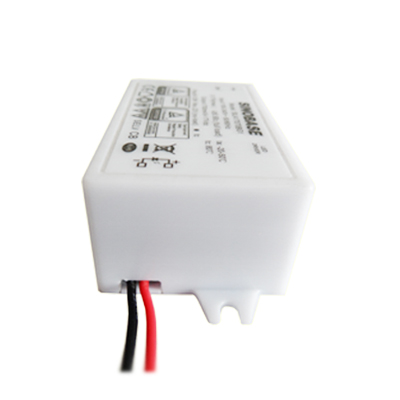

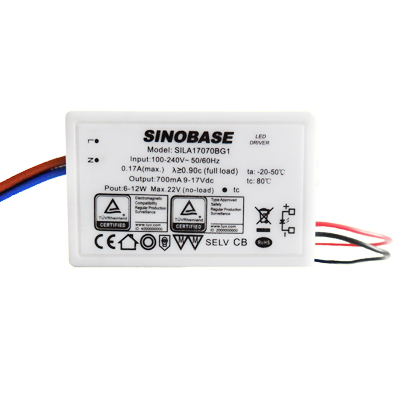

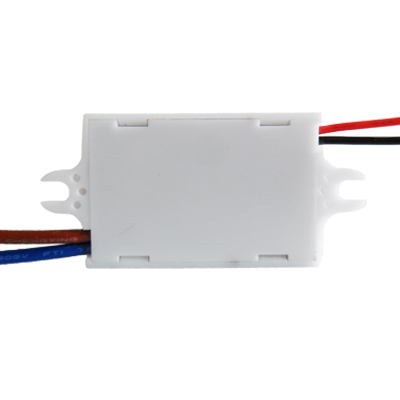

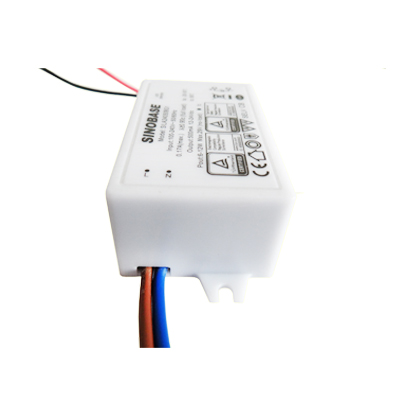

Small size water-proof LED driver (SinoBase) 6-12W, 100-240Vac

for garden, wall, underground lighting and other available light



Features:

· Design in small size to fit your lamp;

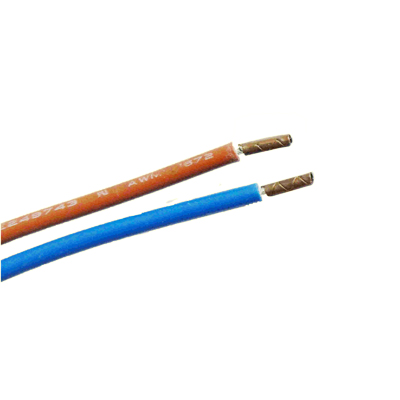

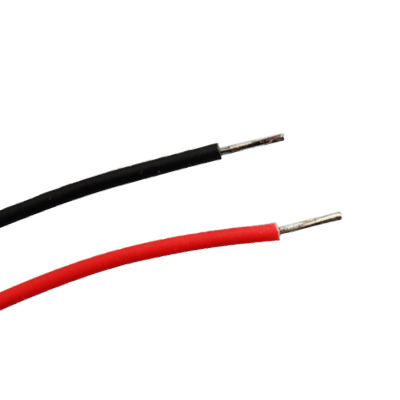

· Easy for installation with cables at both ends;
· Constant current mode;
· Output SELV protection, short circiut, over current and over voltage protection;
· Extremely high precision output current;

· A wide range of input voltage 100-240Vac;


Specification

Power

Model

U_in(Vac)

U_out(Vdc)

Rated I_out (A)

Ta(℃)

Tc (℃)

Max power (W)

Size (L*W*H, mm)

6-12W

SILA60020BG1

100-240V~50/60Hz

30-60

0.2

-20-50

80

12

69*35*23.5

6-12W

SILA48025BG1

100-240V~50/60Hz

24-48

0.25

-20-50

80

12

69*35*23.5

6-12W

SILA40030BG1

100-240V~50/60Hz

20-40

0.3

-20-50

80

12

69*35*23.5

6-12W

SILA34035BG1

100-240V~50/60Hz

17-34

0.35

-20-50

80

11.9

69*35*23.5

6-12W

SILA30040BG1

100-240V~50/60Hz

15-30

0.4

-20-50

80

12

69*35*23.5

6-12W

SILA27045BG1

100-240V~50/60Hz

13-27

0.45

-20-50

80

12.15

69*35*23.5

6-12W

SILA24050BG1

100-240V~50/60Hz

12-24

0.5

-20-50

80

12

69*35*23.5

6-12W

SILA22055BG1

100-240V~50/60Hz

11-22

0.55

-20-50

80

12.1

69*35*23.5

6-12W

SILA20060BG1

100-240V~50/60Hz

10-20

0.6

-20-50

80

12

69*35*23.5

6-12W

SILA18065BG1

100-240V~50/60Hz

9-18

0.65

-20-50

80

11.7

69*35*23.5

6-12W

SILA17070BG1

100-240V~50/60Hz

8-17

0.7

-20-50

80

11.9

69*35*23.5


P.S.:

* The current step is 50mA, contact us for the specs outside of above tables.

* Option for glue potting or not as per you demand.



Certification:TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP



Application:

Design for small body lamp, such as wall lamp, garden lamp, underground light and other availble etc...


SINOBASE LED garden lamp - G7501.jpg  SINOBASE LED garden lamp - G7781.jpg  SINOBASE LED garden lamp - G8105.jpg

W7771.jpg  0.jpg  W7521.jpg



Mechanical specification:



Please contact us for more details: liuning@sinobase.com.cn
