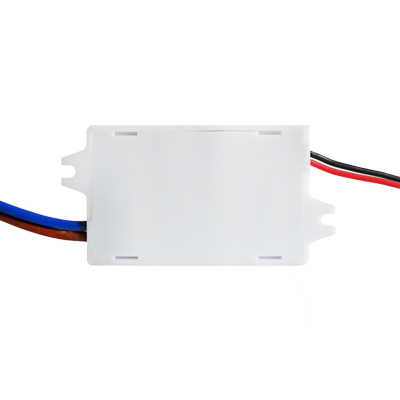

Small-sized water-proof LED driver (SinoBase) 4-8W, 100-240Vac
With 50,000hrs warranty, optional for water-proof version
Features:
· Design in small size to fit your lamp；

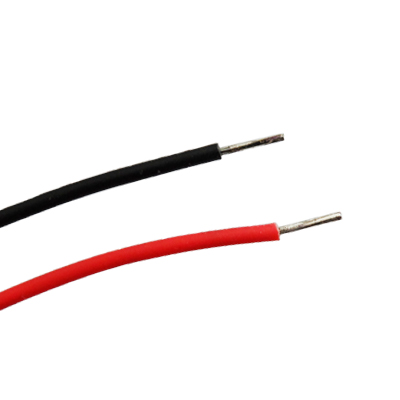

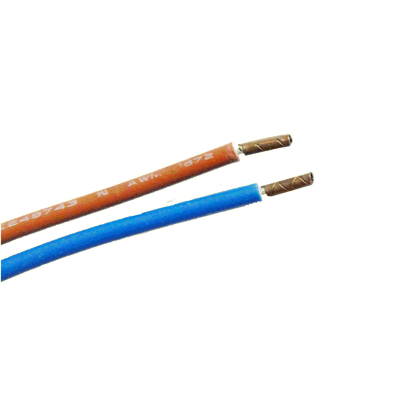

· Easy for installation with cables at both ends；
· Constant current mode；
· Output SELV protection, short circiut, over current and over voltage protection；
· Extremely high precision output current；
· A wide range of input voltage 100-240Vac;
Specification：
| Power | Model | U_in (Vac) | U_out(Vdc) | Rated I_out (A) | Ta(℃) | Tc (℃) | Max power (W) | Size (L*W*H, mm) |
4-8W | SILA32025NG5 | 100-240V～50/60Hz | 16-32 | 0.25 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |

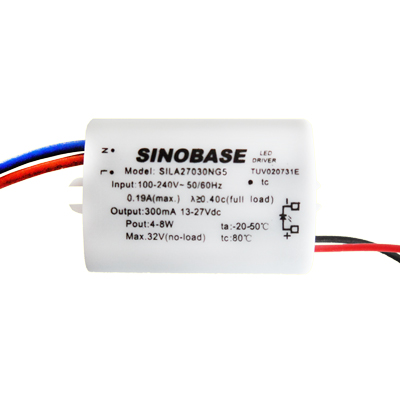

4-8W | SILA27030NG5 | 100-240V～50/60Hz | 13-27 | 0.3 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA23035NG5 | 100-240V～50/60Hz | 11-23 | 0.35 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA20040NG5 | 100-240V～50/60Hz | 10-20 | 0.4 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA18045NG5 | 100-240V～50/60Hz | 9-18 | 0.45 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA16050NG5 | 100-240V～50/60Hz | 8-16 | 0.5 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA15055NG5 | 100-240V～50/60Hz | 7-15 | 0.55 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA13060NG5 | 100-240V～50/60Hz | 7-13 | 0.6 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA12065NG5 | 100-240V～50/60Hz | 6-12 | 0.65 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
4-8W | SILA12070NG5 | 100-240V～50/60Hz | 6-12 | 0.7 | -20-50 | 80 | Max.8 | 42.5*28.5*21 |
P.S.:
* The current step is 50mA, contact us for the specs outside of above tables.
* Option for glue potting or not as per you demand.

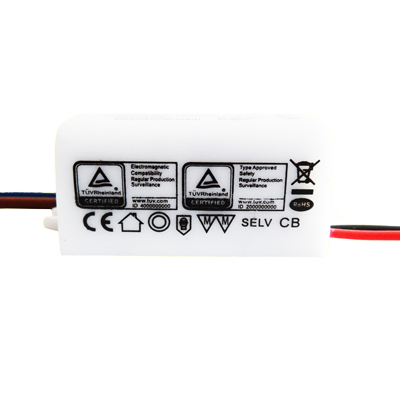

Certification：TUV, CE, LVD, EMC, CB, SAA, ROHS, ERP
Application：
Design for all applicable LED luminaries, such as wall light, garden light, recessed light, bollards and other available LED luminaries, etc...

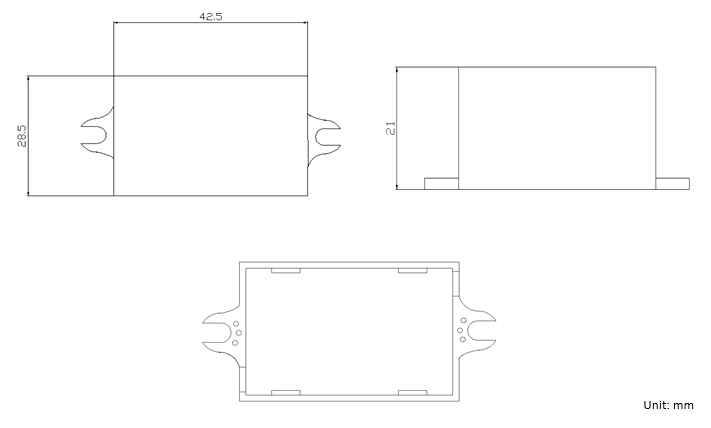

Mechanical specification：
Please contact us for more details:
Email address: liuning@sinobase.com.cn
WhatsApp: +86 15850509133
