Features:

· The casing is made of PC engineering plastic, high temperature resistance (125℃), highflame retardant, both plastic and steel types, and UL safety standards for both pilasticand steel types.

· Support DALI-2 / Push DIM dimmble.

· Support corridor FUNCTION and DC power supply, suitable for central emergency lighting system.

· Under any dimming level, the brightness of each lamp is synchronized and consistent.

· The output current can be adjusted by software programming from 350mA to 700mA.

· Soft dimming and no flcker at any brightness, in line with Erp energy efficiency certification standards for ficker-free.

· The dimming range is 1-100%.

· Standby power consumption is <0.3W, which meets the stancby power requirements of Erp energy efficiency certification.

· Excellent Push DIM dimming algorithm, good synchronization effect, support small gap switch action.

· Lighting surge L-N 2KV.

· Optional intelligent LED hot-swap protection.

· Support open circuit protection, short circuit protecton, overload protection, over voltage protection, over temperature protection.

· The average lifespan is 50,000 hours
· The warranty shall be specfied by datasheets.

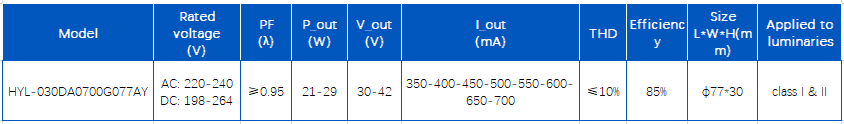

Specification：

Certification：

Application：

Design for office lighting, commerical lighting, hospital lighting, public lighting, home lighting, etc.

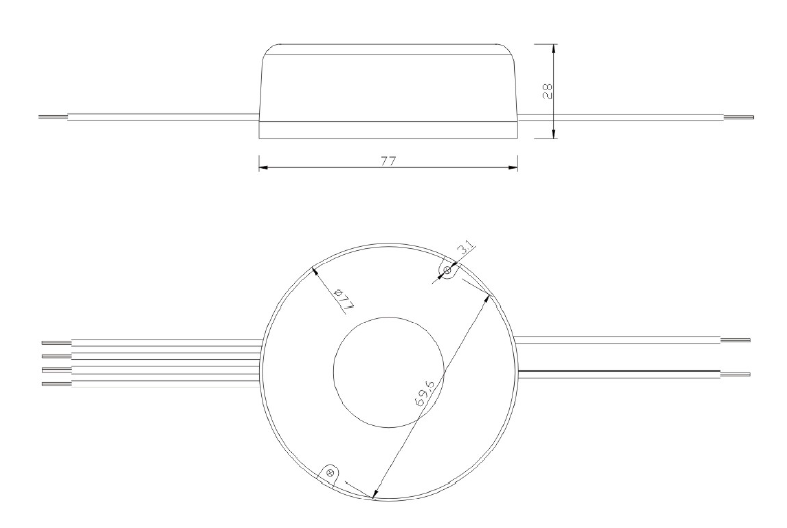

Mechanical specification： (unit:mm)

Please contact us for more details: liuning@sinobase.com.cn
