Features：

· The casing is made of hot-dip galvanized steel plate with surface-coated structure, which has good physical characteristics of acid and alkali resistance, impact resistance and electrical performance characteristics of high voltage resistance.

· 4-position of output current for selection through the dial code switch, which is more convenient to adjust the power of luminaries.

· No flicker of output, meeting the flicker free standard of ERP energy efficiency certification.

· High power factor, high effciency and low harmonics.

· DC power supply EL compliant, EL certified, for central emergency lighting system.

· Lightning strike L-N 2KV, L/N-PE line to ground 3KV.

· Output current accuracy is ±5%.

· Support open circuit protection, short circuit protecton, overload protection, over voltage protection, over temperature protection.

· The average lifespan is more than 50,000 hours.
· The warrantyshall be specfied by datasheets.

Standards：

Satety: IEC/EN 61347-1,   IEC/EN 61347-2-13,   GB 19510.14,   GB 19510.1

EMC: IEC/EN 61000-3-2,    IEC/EN61000-3-3,    IEC/EN55015,    IEC/EN61547,    GB17743,    GB17625-1

Performance: IEC/EN 62384

Flicker: IEEE Std 1789-2015

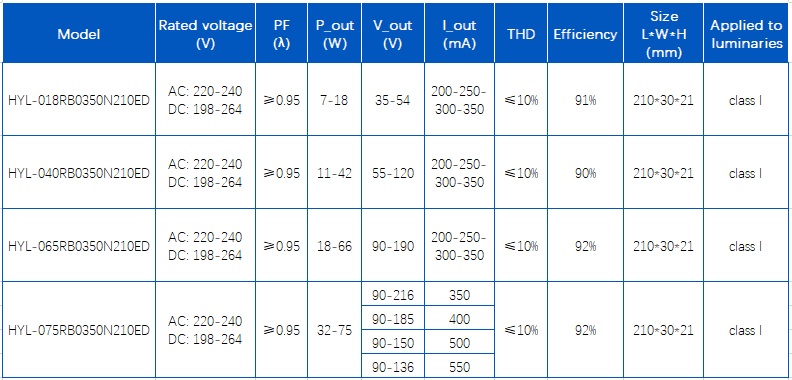

Specification：

Certification：

Appication：

Design for the rectangular shape lamp, such as tri-proof lamp, grille light, frame lamp, linear light, etc.
