Double Power Boring CNC Lathe _ SDT350
With regarding to the special-shaped workpieces which are not easy to rotate, such as the suspension arms of automobile steering system, they can be fixtred on the table, and the tools are intalled into the spindle.
1. Rotating the tools to turn cylindrical, boreand thread.
2. Using combined double-tool to processing the rough & fine boring for the chambering and for the end face at the same time, shaping in one time.
3. This machine can be equipped with specail tools if needed to machine conical surface and arc piece.

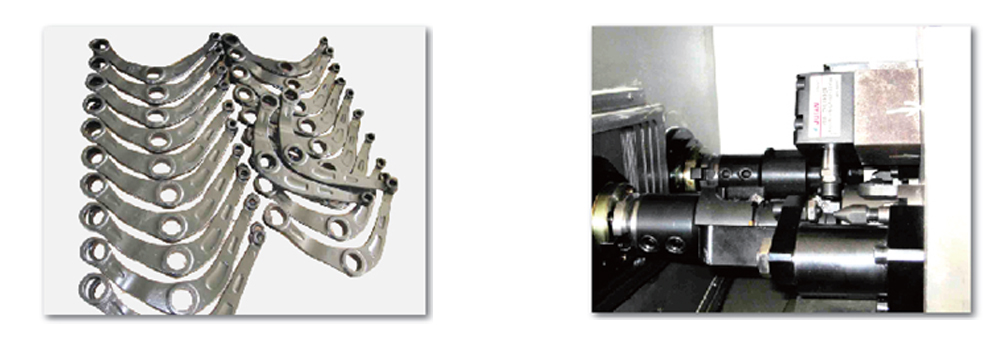

This kind of lathe is designed for maching the suspension arm of automobile steering system. The centre distance range of the hole is from 200mm to 350mm, and the hole diameter is less than 50mm, which can be desinged and changed as per actual parts. In addition, this lathe can be extended to be double holes type, which machines multi-holes with one time clamping, such as preocessing the shell for all kinds of small single-cylinder and double-cylinder engine.
|Spindle||NT40 / MT40|
|Max speed (rpm)||3000|
|Circular degree (mm)||0.005|
|Power head (kw)||1.5|
|Span of power head (mm)||200-350|
|Max diameter of combination cutter (mm)||≤ 120|
|Boring diameter (mm)||≤ 160|
|Boring displacement radius (mm)||≤ 30 (X-axis)|
|Z-axis max travel (mm)||≤ 280|
|Hydralic unit (20litre/min)||output 6-way node|
|Z-axis slide dimession (mm)||500*600|
|Distance between the centre of spindle and the table (mm)||200|
|NC system||single spindle or multi-coordinate|
|Power of high flow coolant motor (kw)||1.5|
|Automatic lubricant pump (L)||2|
|Armour-protected shell and guide guards (mm)||P54|
|Z-axis max travel (mm)||≤280|
