QT8150,QT8180,QT81200球面数控车床

产品型号:QT8150,QT8180,QT81200

产品品牌:SINOBASE

最小起订量:1

原产地:中国

Email 点击询价

End Face CNC Lathe _ DMK32-CX/DMK25-CX



Spherical Surface CNC Lathe_QT8150,8180,81200-.png

Main Feartues:


Normal cutting mode.

Multiple tool path based on single turntable workbench.

Rough turning, finish turning, super fine turning processing.

The circular degree is ≤0.005mm,finish Ra≤0.2um (mirror effect).

Supporting processing for aspheric surfaces, surface machining.




Application:

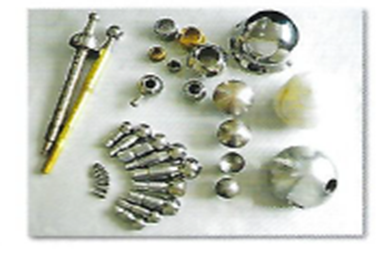

Precision spherical CNC lathe is designed for precision globoids machining, such as machining the mold for optical frames, ball-headed rod for automobile, ball vavle, etc.


Spherical Surface CNC Lathe_QT8150,8180,81200--.png Patents



Technical Parameters:


ModelQT8150QT8180QT81200
Max swing over bed (mm)350500800
Max swing over cross slide (mm)100160460
Width of bed guide rail (mm)410600
Maximum length of workpiece (mm)SR100SR160
Maximum diameter of turning (mm)100160400
X-maximum travel (mm)80100130
Z-maximum travel (mm)200280
Spindle head typeA2 4A2 5, A2 6A2 8
The taper of spindle inner holeStraight hole / with cone diskStraight hole / with cone diskStraight hole / with cone disk
Spindle bore diameter (mm)4260,6590
Spindle seriesInfinitely variable speed
Spindle speed (rpm/min)300-3500Frequency conversion/5000 servo (optional)100-400, 10-1000
Chuck type and sizespecialized collet

Rated power of spindle (kw)3.75.511
X-axis rapid tranverse (mm)6
 Minimum setting unit of   X-axis (mm)0.001
Precise of X-axis repeat orientation (mm)≤ 0.005
Y-axis speed (rpm)75
Minimum setting unit of Z-axis (mm)2πR / 32768*40
Arc length of Y-axis   repeat orientation (mm)± 2πR / 32768*40
Y-axis Gap (mm)<9 arcminute
Z-axis rapid tranverse (mm)86
 Minimum setting unit of   Z-axis (mm)0.001
Precise of Z-axis repeat orientation (mm)≤ 0.005
Rest tool type and no. of workstationLDB4-57-(6125) / BT50(optional)LD48-6132
Toolbar size (mm)2025
Feeding Partsoptions
CNCKMD special system
Customized Provided / Length*width*height (mm)1950*1150*16002150*1250*16502210*1260*1600


Spherical Surface CNC Lathe_QT8150,8180,81200---.jpg
