CK7136/CK7140斜导轨高精度数控车床

产品型号:CK7136/CK7140

产品品牌:SINOBASE

最小起订量:1

原产地:中国

Email 点击询价

CK Series CNC Slant Lathe _ CK7136/CK7140



Main features:

  • 30° slant bed, which is convient for chip removal.

  • Linear rolling guide.

  • Using imported P4 class NSK beading, high-precision, high-speed, high rigidity.

  • With hydraulic tailstock and one-piece sleeve, with good rigidity and high precision.

  • Using internation brand tool holder, with high efficiency of tool changing.

  • With standard CNC configuration and cost-effective.

  • With compact structure which saves space.

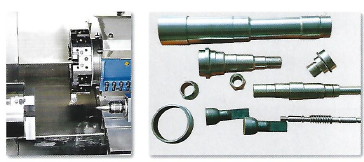

CNC Slant Lathe_CK7136,CK7140-.png


Application:

This machine is designed for processing all kinds of minor axis, plate-parts. And the system provides all functions of column, cone, arc, sphere, thread, slot-cutting processing and so on. which are widely used for the industries of auto parts, hardware, water heating, textile, instrumentation parts, steel/Hagane/non-ferrous metal, etc. This machine ensures the workpieces with rigidity and high surface finishes.


Technical Parameters:

ModelCK7136CK7140
Max swing over bed   (mm)450450
Max swing over cross   slide (mm)240300
Width of bed guide   rail (mm)300350
Maximum length of   workpiece (mm)330350
Maximum diameter of   turning (mm)360400
X-max travel (mm)245240
Z-max travel (mm)400460
Spindle head typeA2 5, A2 6A2 6
The taper of spindle   inner holeStraight hole / with cone   diskStraight hole  / with cone disk
Spindle bore   diameter (mm)60,6565
Spindle seriesInfinitely variable speedInfinitely variable speed
Spindle speed   (rpm/min)500-3000,10-5000500-3000,10-5000
Chuck type and size6'', 8'', collet chuck8'', 10'',  collet chuck
Rated power of   spindle (kw)5.57.5
Tailstock diameter   (mm)Φ70Φ70
Tailstock guide rail   travel (mm)220250
Tailstock taper holeMT4MT4
Spinlde unit   displacement size (mm)100100
X-axis rapid   tranverse (mm)9-109
 Minimum setting unit of X-axis (mm)0.0010.001
Precise of X-axis   repeat orientation (mm)≤0.005≤0.005
Z-axis rapid   tranverse (mm)9--159
 Minimum setting unit of Z-axis (mm)0.0010.001
Precise of Z-axis   repeat orientation (mm)≤0.005≤0.005
Rest tool type and   no. of workstationElectric positive and   reverse/8Electric positive and   reverse/8
Toolbar size (mm)2525
Feeding PartsOptionalOptional
CNCOptionalOptional
Customized Provided   / Length*width*height (mm)2050*1440*16502050*1430*1700


CNC Slant Lathe_CK7136,CK7140--.jpg
